PARI LC SPRINT® Family

Nebuliser for indication-specific droplet size

The nebulisers of the PARI LC SPRINT family are tailored to the individual therapeutic requirements of the nose, nasal sinuses, throat, pharynx and lungs. Choose the right PARI LC SPRINT Nebuliser for yourself based on the age of the patient and the site of action.

  • The nebulisers from the PARI LC SPRINT family are fitted with different nozzle attachments in a range of colours which generate different droplet sizes.
  • Easy to clean.

PARI LC SPRINT family – customised to the individual needs of users

PARI LC SPRINT Nebuliser for the nasal sinuses

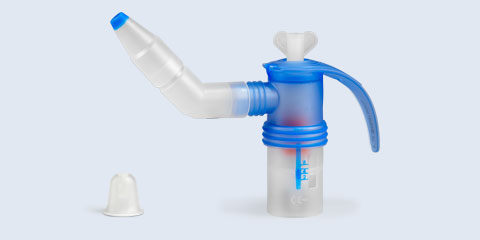

PARI LC SPRINT SINUS Nebuliser

PARI LC SPRINT SINUS Nebuliser

Users

For children and adults for the treatment of the nasal sinuses.

Configuration
PARI LC SPRINT SINUS Nebuliser (orange nozzle attachment) with bend (45 degrees), vibration connection, nasal joining piece and nasal plug.

Item No.: Available as PARI SINUS2 Year Pack

Aerosol characteristics

PARI SINUS compressor in combination withPARI LC SPRINT SINUS Nebuliser

Total Output Rate:220 mg/min
MMD:3.2 µm
Mass percentage below 5µm:71 %

Downloads

PARI LC SPRINT SINUS

Instructions for use
023D2230-F-2020-02-03

Download PDF

PARI SINUS - Tips for Use and Hygiene

PARI SINUS - Tips for Use and Hygiene

Download PDF

PARI LC SPRINT Nebuliser for throat and pharynx

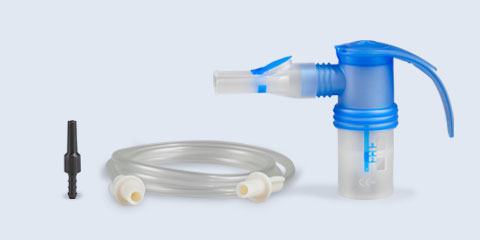

PARI LC SPRINT XLent Nebuliser

PARI LC SPRINT XLent Nebuliser

Users
For children and adults for the treatment of throat and pharynx.

Configuration
PARI LC SPRINT XLent Nebuliser (transparent nozzle attachment), connection tubing including adapter.

Item No.: 023G1801

Aerosol characteristics

PARI LC SPRINT XLent Nebuliser in combination with PARI BOY SX Kompressor.

Total Output Rate:875 mg/min
MMD:7.3 µm
Mass percentage below 5µm:65.4 %
Massenanteil > 7µm:53 %

Downloads

PARI LC SPRINT XLent Nebuliser

Instructions for use
023D1030-B-10/15

Download PDF

PARI XLent

Instructions for use
023D1047-A-10/13

Download PDF

PARI LC SPRINT Nebuliser for the lungs

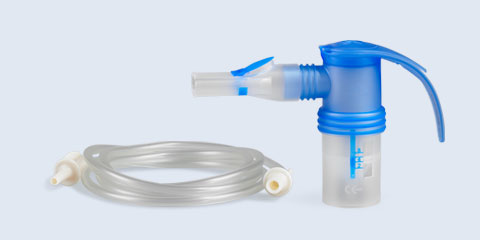

PARI LC SPRINT® Nebuliser

PARI LC SPRINT® Nebuliser

Users
For adults and children from 4 years of age for the treatment of the airways.

Configuration
Jet nebuliser (blue nozzle attachment) with valve system, universal mouthpiece and connection tubing.

Item No.: 023G1001 IFU Languages: de, fr, it, pt, es, nl, en

Aerosol characteristics

PARI LC SPRINT nebuliser in combination with PARI BOY compressor

Respirable Drug Delivery Rate:99 µl/min
MMAD:3.8 µm
Mass fraction < 5 µm:62 %

Downloads

PARI LC SPRINT Instructions for use

de, fr, it, pt, es, nl, en
023D2205-D 2021-12-06

Download PDF

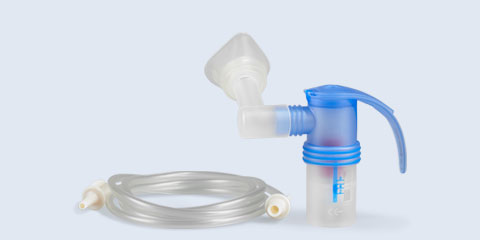

PARI LC SPRINT BABY Nebuliser Size 0

PARI LC SPRINT BABY Nebuliser Size 0

Users
For premature babies for the treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 0 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1400

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate80 µl/min
MMAD:2.8 µm
Mass fraction < 5 µm:80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

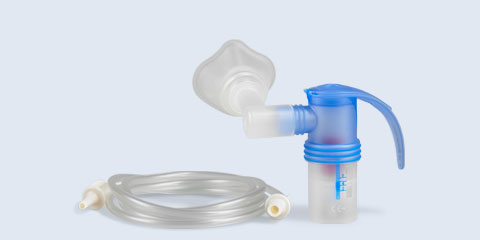

PARI LC SPRINT BABY Nebuliser Size 1

PARI LC SPRINT BABY Nebuliser Size 1

Users
For babies and small children 0-1 years of age for the treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 1 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1401

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate80 µl/min
MMAD:2.8 µm
Mass fraction < 5 µm:80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF
PARI LC SPRINT BABY Nebuliser Size 2

PARI LC SPRINT BABY Nebuliser Size 2

Users
For babies and small children 1-3 years of age for the treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 2 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1402

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate80 µl/min
MMAD:2.8 µm
Mass fraction < 5 µm:80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

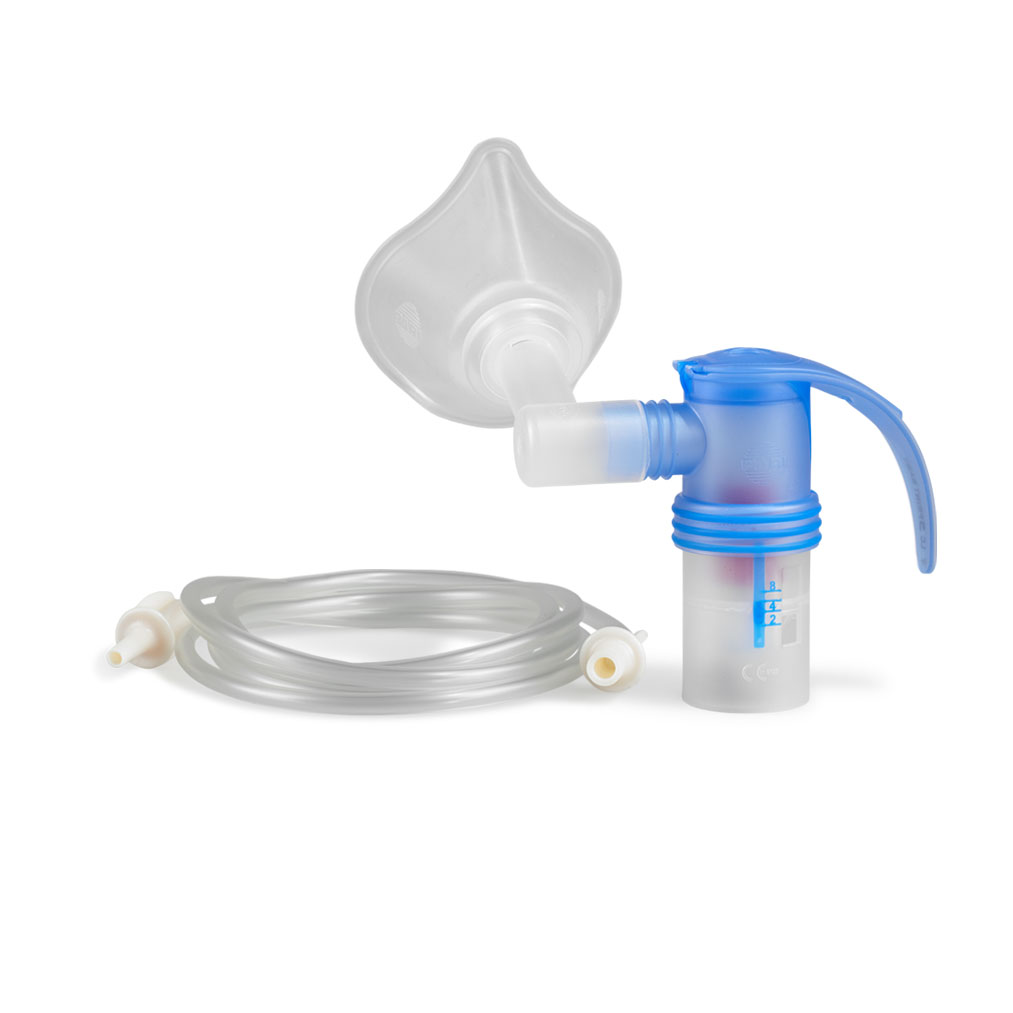

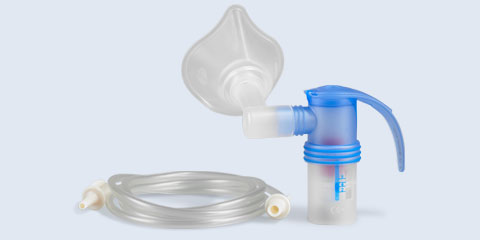

PARI LC SPRINT BABY Nebuliser Size 3

PARI LC SPRINT BABY Nebuliser Size 3

Users
For children from 3 years of age for the treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 2 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1403

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate80 µl/min
MMAD:2.8 µm
Mass fraction < 5 µm:80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

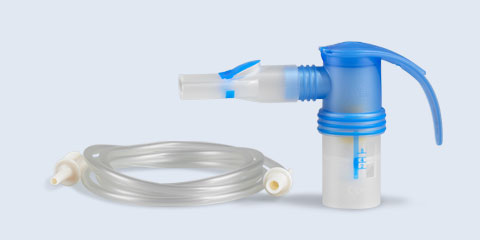

PARI LC SPRINT Junior Nebuliser

PARI LC SPRINT Junior Nebuliser

Users
For children for the treatment of the airways

Configuration Jet nebuliser (yellow nozzle attachment) with valve system, universal mouthpiece, and connection tubing.

Item No.: 023G1101 Western Europe IFU languages de, fr, it, pt, es, nl, en – 023G1106 Eastern Europe IFU bg, cs, el, et, pl, hu, ro, sk, sl

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT Junior Nebuliser

Respirable Drug Delivery Rate117 µl/min
MMAD:3.1 µm
Mass fraction < 5 µm:73 %

Downloads

PARI LC SPRINT Instructions for use

de, fr, it, pt, es, nl, en
023D2205-D 2021-12-06

Download PDF

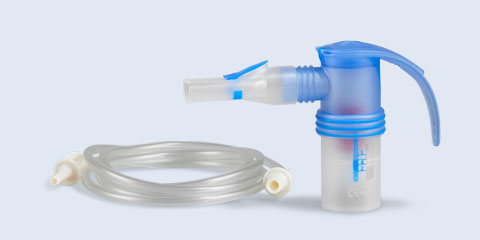

PARI LC SPRINT STAR Nebuliser

PARI LC SPRINT STAR Nebuliser

Users
For children and adults for the treatment of the deep airways.

Configuration
Fine droplet nebuliser (red nozzle attachment) with PIF control, universal mouthpiece and connection tubing.

Item No.: 023G1250

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT STAR Nebuliser

Respirable Drug Delivery Rate80 µl/min
MMAD:2.8 µm
Mass fraction < 5 µm:80 %

Downloads

PARI LC SPRINT Instructions for use

de, fr, it, pt, es, nl, en
023D2205-D 2021-12-06

Download PDF

PARI LC SPRINT Nebuliser for the Lungs – for the treatment of patients with a tracheostoma

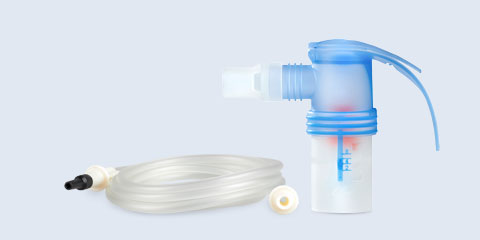

PARI LC SPRINT Tracheo

PARI LC SPRINT Tracheo

Users

For the treatment of the airways of children and adults with a tracheostoma.

Configuration
Jet nebuliser (nozzle insert orange) with valve system, LC Tracheo adapter and connecting tubing with adapter.

Item No.: 023G1081

Aerosol characteristics

Aerolsolcharacteristics of the PARI LC SPRINT Nebuliser in combination with the PARI CENTRAL (pneumatic source 1,6 bar)

Respirable Drug Delivery Rate90.2 µl/min
MMAD:3.4 µm
Mass fraction < 5 µm:69.4 %

Downloads

PARI LC SPRINT Tracheo Western Europe

Instructions for use
023D2141-A-de-2022-12-02

Download PDF

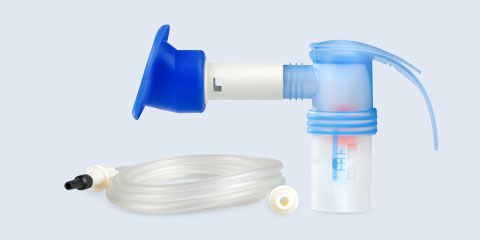

PARI LC SPRINT Tracheo with Mask

PARI LC SPRINT Tracheo with Mask

Users
For the treatment of the airways of children and adults with a tracheostoma.

Configuration
Jet nebuliser (nozzle insert orange) with valve system, PARI Tracheo mask adapter, PARI Tracheostomy mask and connecting tubing with adapter.

Available as a spare part: PARI Tracheo Mask which consists of the PARI Tracheo mask adapter, PARI Tracheostomy mask (025G0008).

Item No.: 023G1091

Aerosol characteristics

PARI LC SPRINT Tracheo Nebuliser in combination with the PARI CENTRAL (pneumatic source 1,6 bar)

Respirable Drug Delivery Rate (RDDR):90.2 µl/min
MMAD:3.4 µm
Massenanteil < 5 µm:69.4 %

Downloads

PARI LC SPRINT Tracheo Western Europe

Instructions for use
023D2141-A-de-2022-12-02

Download PDF

PARI LC SPRINT Accessories

PARI BABY Mask Size 3 with BABY bend

PARI BABY Mask Size 3


Item No.: 041G0703

PARI BABY Mask Size 2 with BABY bend

PARI BABY Mask Size 2


Item No.: 041G0702

PARI BABY Mask Size 1 with BABY bend

PARI BABY Mask Size 1


Item No.: 041G0701

PARI BABY Mask Size 0 with BABY bend

PARI BABY Mask Size 0


Item No.: 041G0700

PARI LC SPRINT SINUS Applikations Set

PARI LC SPRINT SINUS Application-Set


Item No.: 023G2840

Aerosol characteristics:

Measurement according to DIN EN ISO 27427:2020-2 (with salbutamol)

For the PARI LC SPRINT Sinus Nebuliser Measurement with the Malvern Spraytec at 23° C, 50% relative humidity. Nebulised medium: 0.9% NaCl (5 ml), jet flow 4.6 L/min.

For the PARI LC SPRINT Xlent Nebuliser Measurement with the Malvern Spraytec at 23° C, 50% relative humidity, nebulised medium: 0.9 % NaCl (6 ml), inspiratory flow of 20 L/min.

Spare parts
You can get all replacement parts directly from our respective local PARI representative.

What is PARI PIF Control?
Training for effective inhalation

Slow inhalation promotes the deposition of the active ingredients in the lungs. To achieve the best possible inspiration for a high level of lung deposition,

PARI has developed a breath-sensing feedback system - the PIF Control System.

  • PIF = Peak Inspiratory Flow
  • In the event of too rapid inhalation, the inspiratory valve shim closes the nebuliser chamber to a small opening.
  • You feel this as resistance - a sign to breathe out and inhale more slowly with the next breath. Until no more resistance can be felt.

Accessories for the PARI LC SPRINT SINUS

PARI LC SPRINT SINUS Application Set

May only be used with the nebuliser PARI LC SPRINT SINUS (023G2800) and with the PARI LC SPRINT SINUS Year Pack (023G2860), 45-degree bend, nasal joining piece, vibration connection, nasal plug.

PARI SINUS2

PARI SINUS2

Pulsating aerosol for the treatment of sinusitis.

Go to PARI SINUS2

The colours of the nozzle attachments

The nebuliser is the aerosol generator and is therefore the heart of the entire inhalation system. To ensure that the droplets reach to where they are needed, such as the sinuses or lungs, a specific aerosol has to be generated. Read more in our background knowledge on inhalation.

Read more in our background knowledge on inhalation

PARI-Product-guide

Product guide

Go to product guide

Life with asthma

Find out more about asthma and how you can still have control over your life with this disease.

More on day-to-day life with asthma

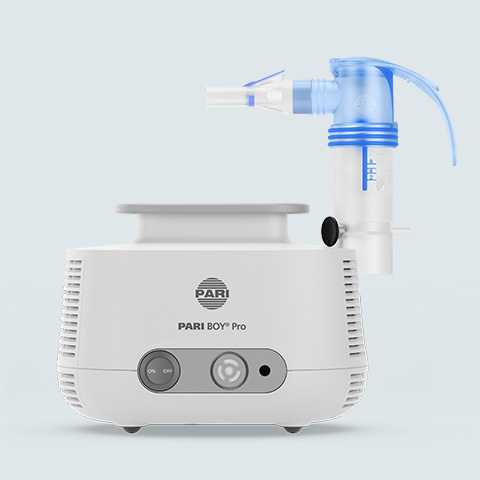

PARI BOY Pro
