Wall outlet fitting for the central gas supply in the hospital
Users
With PARI CENTRAL AIR you can operate a PARI nebuliser with compressed air from the central medical gas supply at your hospital.
Configurations

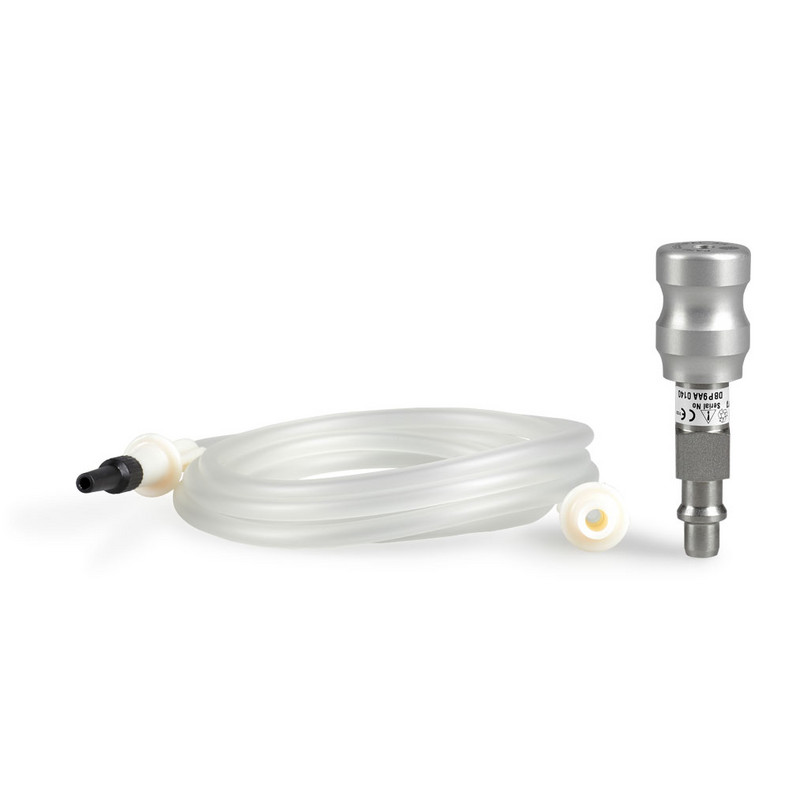

PARI CENTRAL AIR, connection tubing for the PARI CENTRAL and PARI CENTRAL Clip (mount for PARI LC SPRINT and PARI LC PLUS Nebuliser).
Operation
No calibration needed, just plug it in. Pre-set operating flow – ideal for PARI nebulisers.
Maintenance-free
The PARI CENTRAL is made from high-quality materials and is maintenance-free.
DIN 13260-2
Inlet pressure / outlet/operating pressure:
500 kPa (3.6 bar bis 5.5 bar) /
160 kPa (0.8 bar bis 2.0 bar), measured with the PARI reference nozzle
Dimensions / Weight:
length 99 mm, diameter 26 mm / weight: 67 g
Technische Änderungen vorbehalten.
SS 87 524 30
Inlet pressure / outlet/operating pressure:
500 kPa (3.6 bar bis 5.5 bar) /
160 kPa (0.8 bar bis 2.0 bar), measured with the PARI reference nozzle
Dimensions / Weight:
length 99 mm, diameter 26 mm / weight: 67 g
Subject to technical changes.
Item No.: 041G4550
Item No.: 041G4593
All spare parts can be purchased from your local PARI retailer.
Item No.: 058G1100
