Hospitals and medical practices

At PARI we have specific solutions for professional inhalation therapy at your hospital or medical practice.

The needs of the patients at hospitals and medical practices are very varied, which is why our PARI inhalation devices, PARI nebulisers and all PARI accessories are as well.

  • Find the appropriate treatment option for professional inhalation therapy for your patients.
  • Effective, easy and individualised.
  • All PARI nebulisers can be disinfected and processed in autoclaves.

PARI for hospitals and medical practices

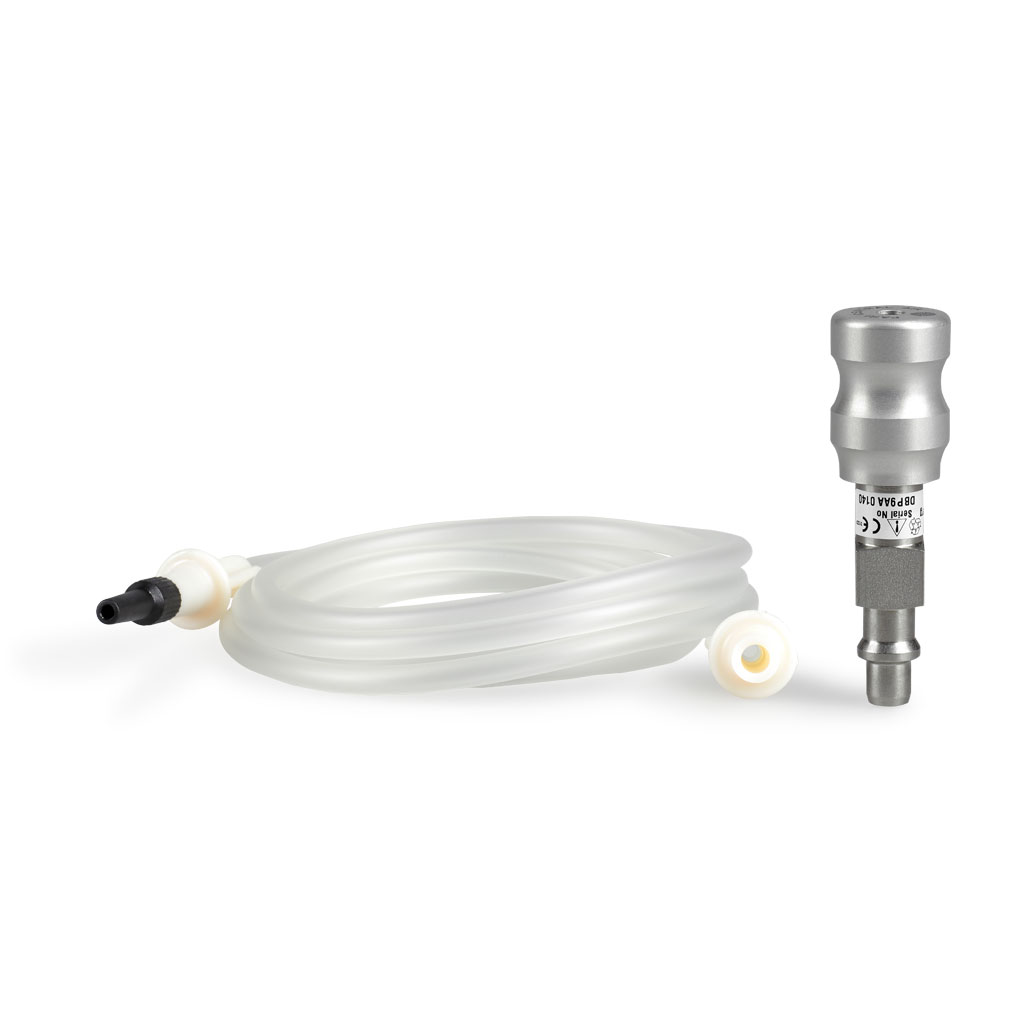

PARI CENTRAL AIR

PARI CENTRAL AIR

Wall outlet fitting for the central gas supply in the hospital


Users
With PARI CENTRAL AIR you can operate a PARI nebuliser with compressed air from the central medical gas supply at your hospital.


Configurations
PARI CENTRAL AIR, connection tubing for the PARI CENTRAL and PARI CENTRAL Clip (mount for PARI LC SPRINT and PARI LC PLUS Nebuliser).


Operation
No calibration needed, just plug it in. Pre-set operating flow – ideal for PARI nebulisers.


Maintenance-free
The PARI CENTRAL is made from high-quality materials and is maintenance-free.

Item No.: 058G1100

DIN 13260-2

Inlet pressure / outlet/operating pressure:
500 kPa (3.6 bar bis 5.5 bar) /
160 kPa (0.8 bar bis 2.0 bar), measured with the PARI reference nozzle

Dimensions / Weight:
length 99 mm, diameter 26 mm / weight: 67 g

Technische Änderungen vorbehalten.



SS 87 524 30

Inlet pressure / outlet/operating pressure:
500 kPa (3.6 bar bis 5.5 bar) /
160 kPa (0.8 bar bis 2.0 bar), measured with the PARI reference nozzle

Dimensions / Weight:
length 99 mm, diameter 26 mm / weight: 67 g

Subject to technical changes.

Downloads

PARI CENTRAL

Instructions for use
058D0012-G 02/2018

Download PDF
PARI CENTRAL O2

PARI CENTRAL O2

Wall fittings for the central gas supply at hospitals.


Users
With PARI CENTRAL O2 you can run a PARI nebuliser with oxygen from the central medical gas supply at your hospital.


Configuration
PARI CENTRAL O2, connection tubing for the PARI CENTRAL and PARI CENTRAL Clip (mount for PARI LC SPRINT and PARI LC PLUS Nebuliser).


Operation
No long calibration process necessary, just plug it in. Pre-set operating flow – ideal for PARI nebulisers.


Maintenance-free
The PARI CENTRAL O2 is made from high-quality materials and is maintenance-free.

Item No.: 058G1200

DIN 13260-2

Inlet pressure / outlet/operating pressure:
500 kPa (3.6 bar bis 5.5 bar) /
160 kPa (0.8 bar bis 2.0 bar), measured with the PARI reference nozzle

Dimensions / Weight:
length 86 mm, diameter 26 mm / weight: 67 g

Technische Änderungen vorbehalten.



SS 87 524 30

Inlet pressure / outlet/operating pressure:
500 kPa (3.6 bar bis 5.5 bar) /
160 kPa (0.8 bar bis 2.0 bar), measured with the PARI reference nozzle

Dimensions / Weight:
length 99 mm, diameter 26 mm / weight: 67 g

Subject to technical changes.

Downloads

PARI CENTRAL

Instructions for use
058D0012-G 02/2018

Download PDF
PARI Filter/Valve Set

PARI Filter/Valve Set

Users
Do you want to prevent inhaled medications from getting into the room air when they are exhaled? Protect those indirectly involved with the inhalation and your nursing staff from excess aerosol with the PARI FILTER/Valve Set. The PARI FILTER/Valve Set is of particular importance when antibiotics, steroids and antimycotic drugs are being inhaled.

Item No.: 041G0500

Configuration
PARI Filter/Valve Set with mouthpiece with no expiratory valve, Y-piece and filter including filter pad.


Can be used in combination with these PARI products
PARI LC SPRINT family, PARI LC family, PARI LL Nebulisers and the eFlow®rapid Nebuliser System.

Downloads

PARI Filter Valve Set

Instructions for use
041D0205-D-10/12

Download PDF

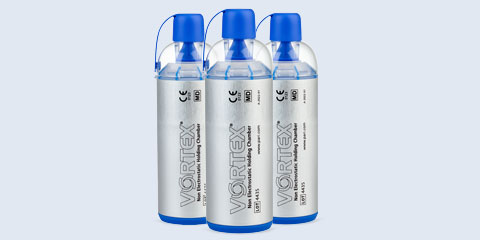

VORTEX Holding Chamber Hospital Pack, pack of 10

VORTEX Holding Chamber Hospital Pack, pack of 10

Users
Suitable for use by children aged 4 and over and by adults.


Configuration
The VORTEX holding chamber is available in packs of 10 for hospitals. Masks can be ordered individually and as needed.

Item No.: 051G5100

Hygiene
The VORTEX holding chamber is designed with the stringent hygienic requirements of hospitals in mind. It can be disinfected and sterilised at up to 134°C.

Downloads

VORTEX Hospital Pack

Instruction for use
051D5014-A-04/17

Download PDF
PARI LC SPRINT Junior Hospital Pack

PARI LC SPRINT Junior Hospital Pack

User
For babies and children receiving lung treatments.


Configuration
Jet nebuliser (yellow nozzle attachment) with valve system and universal mouthpiece, without connection tubing, pack of 5.

Item No.: 023G6011

Aerosol characteristics

PARI JuniorBOY SX compressor in combination with PARI LC SPRINT Junior Nebuliser

Total Output Rate:370 mg/min
MMD:2.9 µm
Mass percentage below 5µm:76%

Measurement with the Malvern Mastersizer X (calculated according to the Fraunhofer model) at 23°C, 50% relative humidity, nebulised medium: 0.9% NaCl (5ml), inspiratory flow 12 l/min. Measured at a child's inspiration flow rate.

Downloads

PARI LC SPRINT Family Clinic

Instructions for use
023D1033-A-07/11

Download PDF
PARI LC SPRINT Hospital Pack

PARI LC SPRINT Hospital Pack

Users
For children aged 4 years and older and adults for treatment of the central region of the lungs.


Configuration
Jet nebuliser (blue nozzle attachment) with valve system and universal mouthpiece, without connection tubing, pack of 10.

Item No.: 023G6010

Aerosol characteristics

PARI TurboBOY S compressor in combination with PARI LC SPRINT Nebuliser

Total Output Rate:600 mg/min
MMD:3.5 µm
Mass percentage below 5µm:67%

Measurement with the Malvern Mastersizer X (calculated according to the Fraunhofer model) at 23°C, 50% relative humidity, nebulised medium: 0.9% NaCl (5ml), inspiratory flow 20l/min.

Downloads

PARI LC SPRINT Family Clinic

Instructions for use
023D1033-A-07/11

Download PDF

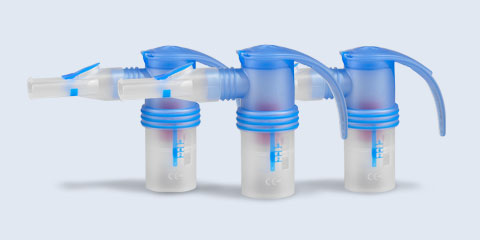

PARI LC SPRINT STAR Hospital Pack

PARI LC SPRINT STAR Hospital Pack

Users
For children age 4 years and over and adults for the treatment of the peripheral areas of the lungs.


Configuration
Fine droplet nebuliser (red nozzle attachment) with valve system, PIF control system (respiration-sensing feedback system for controlling inspiratory flow), and universal mouthpiece, without connection tubing, pack of 5.

Item No.: 023G6012

Aerosol characteristics

PARI BOY SX compressor in combination with PARI LC SPRINT STAR Nebuliser

Total Output Rate:450 mg/min
MMD:2.2 µm
Mass percentage below 5µm:89%

Measurement with the Malvern Mastersizer X (calculated according to the Fraunhofer model) at 23°C, 50% relative humidity, nebulised medium: 0.9% NaCl (5ml), inspiratory flow 20l/min.

Downloads

PARI LC SPRINT Family Clinic

Instructions for use
023D1033-A-07/11

Download PDF

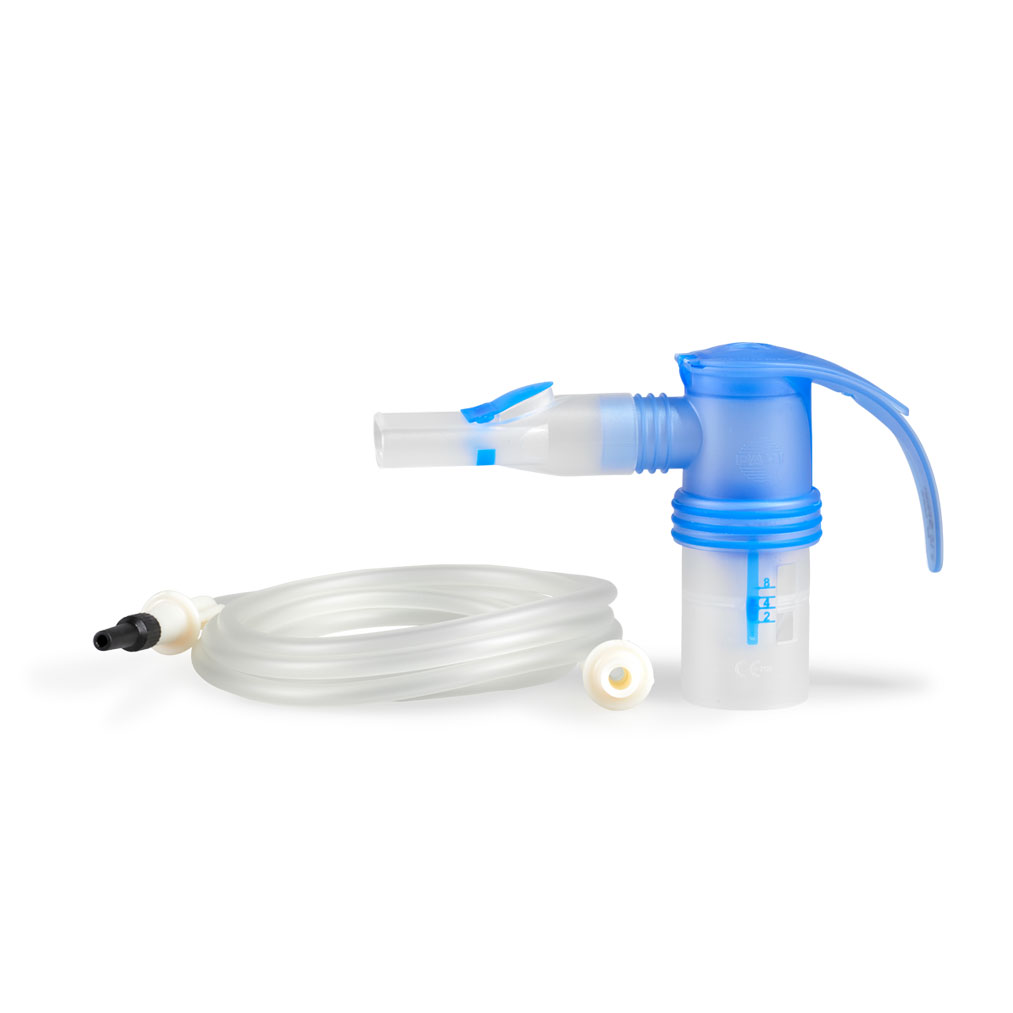

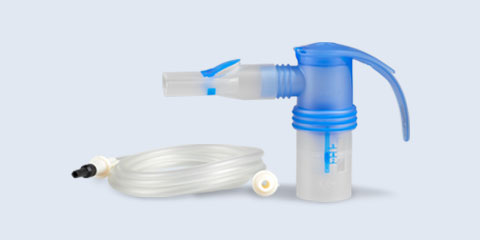

PARI LC SPRINT CENTRAL

PARI LC SPRINT CENTRAL

Users
For children aged 4 years and older and adults for treatment of the central region of the lungs for use with compressed air units in hospitals.


Configuration
Jet nebuliser (blue nozzle attachment) with valve system and universal mouthpiece, with special connection tubing for connecting to the PARI CENTRAL.

Item No.: 023G5800

Aerosol characteristics

PARI CENTRAL (Pressure Source 1.6bar) in combination with PARI LC SPRINT Nebuliser

Total Output Rate:600 mg/min
MMD:3.5 µm
Mass percentage below 5µm:67%

Measurement with the Malvern Mastersizer X (calculated according to the Fraunhofer model) at 23°C, 50% relative humidity, nebulised medium: 0.9% NaCl (5ml), inspiratory flow 20l/min.

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

PARI LC SPRINT Family Clinic

Instructions for use
023D1033-A-07/11

Download PDF
Child Mask soft with mask stabiliser

Child Mask soft with mask stabiliser

Hospital Pack

The set contains five PARI Child Masks soft and five PARI Mask Stabilisers. The mask with the mask stabiliser can be sterilised.

Item No.: 041G0746

Downloads

PARI Child- and adult mask soft

Instructions for use
041D0333-C-10/10

Download PDF

PARI Mask stabiliser

Instructions for use
041D0406-B-01/13

Download PDF
Adult Mask soft with mask stabiliser

Adult Mask soft with mask stabiliser

Hospital Pack

The set contains five PARI Adults Masks soft and five PARI Mask Stabilisers. The mask with the mask stabiliser can be sterilised.

Item No.: 041G0747

Downloads

PARI Child- and adult mask soft

Instructions for use
041D0333-C-10/10

Download PDF

PARI Mask stabiliser

Instructions for use
041D0406-B-01/13

Download PDF

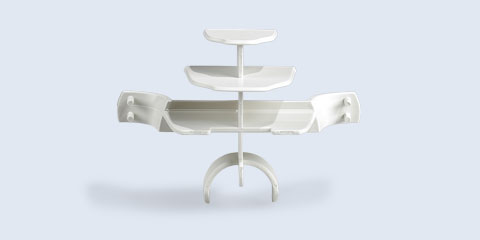

Mask stabiliser for Child mask soft

Mask stabiliser for Child mask soft

(pack of 5)

Item No.: 041G0748

Downloads

PARI Mask stabiliser

Instructions for use
041D0406-B-01/13

Download PDF

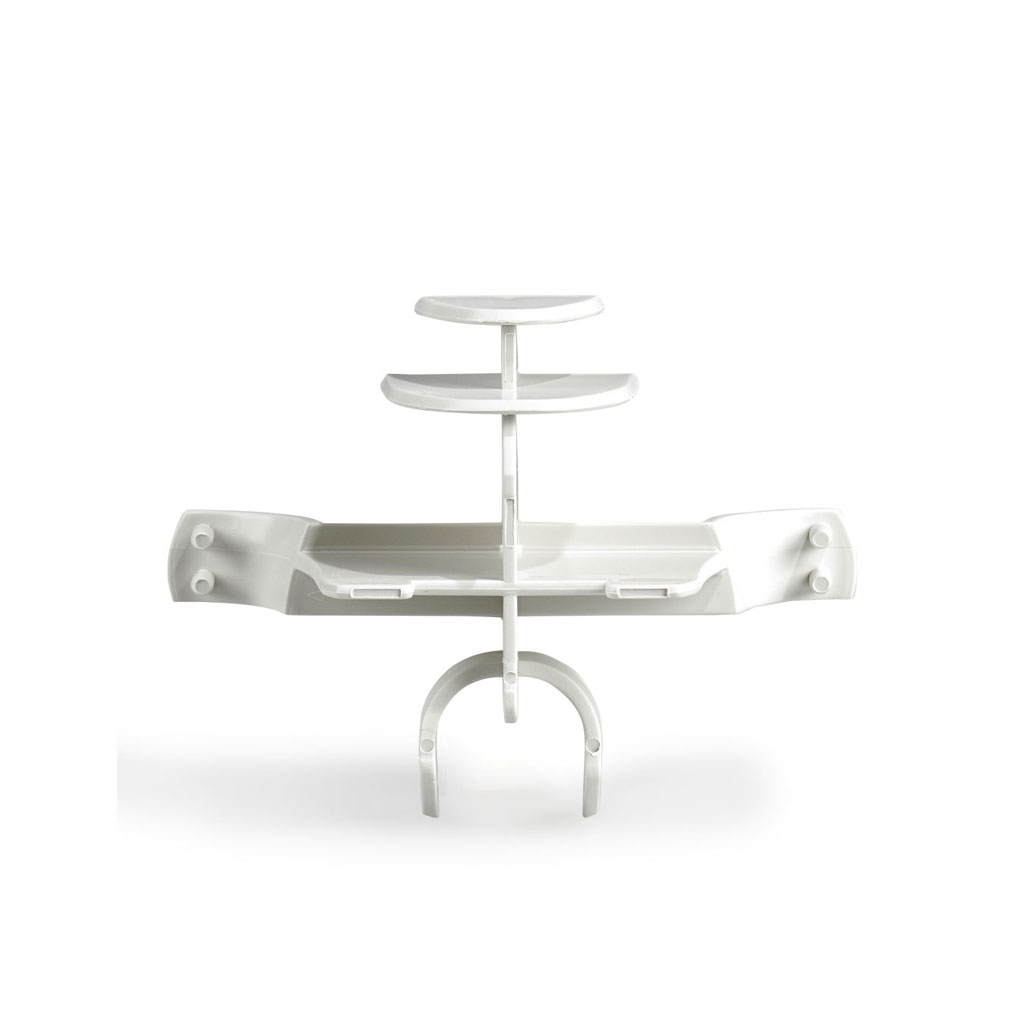

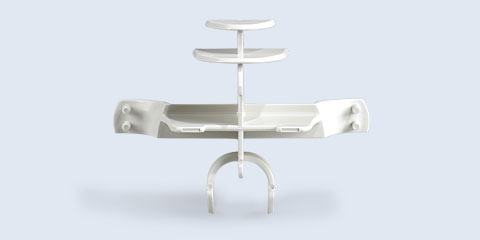

Mask stabiliser for Adult mask soft

Mask stabiliser for Adult mask soft

(pack of 5)

Item No.: 041G0749

Downloads

PARI Mask stabiliser

Instructions for use
041D0406-B-01/13

Download PDF
PARI CENTRAL Clip

PARI CENTRAL Clip

Configuration
Practical mount for PARI LC SPRINT or PARI LC PLUS Nebuliser and connection tubing at PARI CENTRAL. Pack of 5.

Item No.: 058G2001

Downloads

PARI CENTRAL Clip

Instructions for use
058D0013-B-07/11

Download PDF

Accessories and replacement parts

Replacement parts: You can get all replacement parts from our respective local PARI representatives.

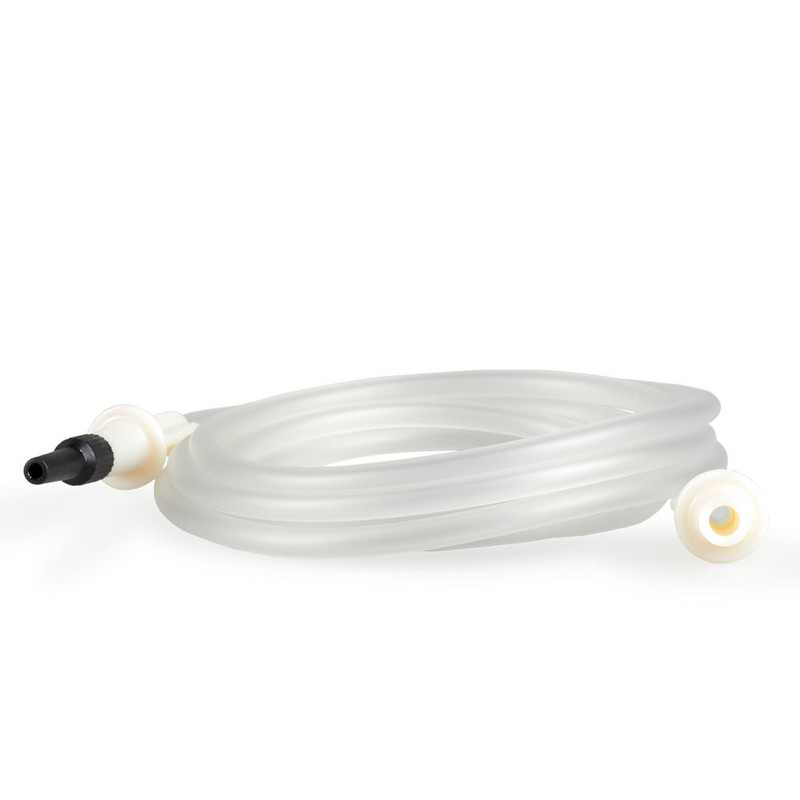

Connection tubing
for PARI CENTRAL
Item No.: 041G4550
Filter Pads pack of 30Item No.: 041B0522
Filter Pads pack of 100Item No.: 041B0523
Filter Pads pack of 1000Item No.: 041B0524
PARI MouthpieceItem No.: 012E1720
Exhalation filter-1Item No.: 041B0515
Y-connectorItem No.: 041E0530
PARI BABY mask Size 0Item No.: 041G0700
PARI BABY mask Size 1Item No.: 041G0701
PARI BABY mask Size 2Item No.: 041G0702
PARI BABY mask Size 3Item No.: 041G0703
PARI SMARTMASK KidsItem No.: 078G5000
PARI SMARTMASKItem No.: 041G0730
VORTEX Mouthpiece pack of 10Item No.: 051G5101
