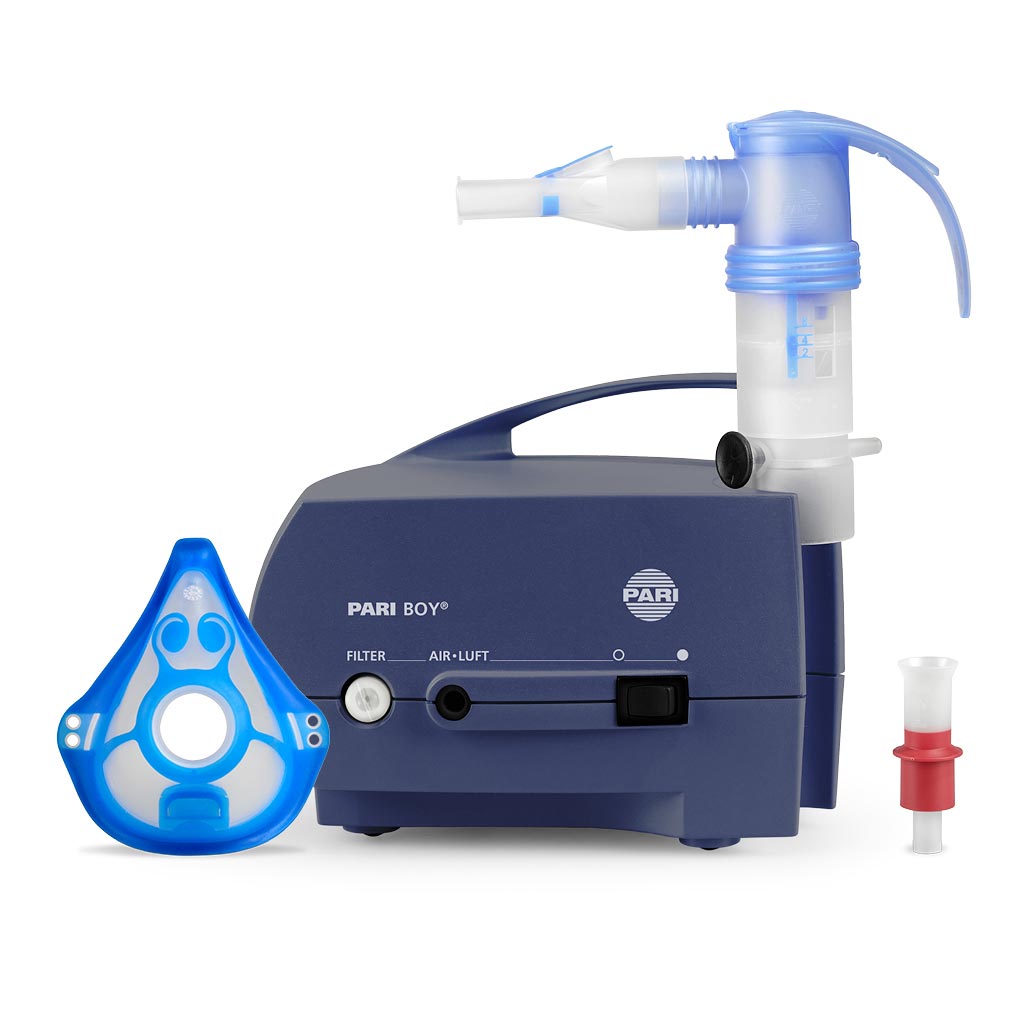

The PARI BOY is the right device for patients who need particular assistance during treatment and who also might benefit from short inhalation session times. An extensive range of extra equipment makes the PARI BOY the versatile device for airway treatment.
Configuration:
Item No.: 085G3055
What is the PARI BOY and how can it be used?
The high performance and extra equipment of the PARI BOY make it the right choice for treating severe diseases of the airway(e.g. COPDChronic bronchitis). The powerful PARI BOY compressor in combination with the PARI LC SPRINT Nebuliser ensures short inhalation times.
PARI BOY and PARI BOY SX are both variants of the product model PARI BOY SX (Type 085). Their technical and performance data are identical.
Instructions for use
Instructions for use
023D1050-R 2024-01
Aerosol characteristics
PARI BOY compressor in combination with PARI LC SPRINT Nebuliser (blue insert)
| Total Output Rate: | 600 mg/min |
| MMD: | 3.5 µm |
| Mass percentage below 5 µm: | 67 % |
PARI BOY compressor in combination with PARI LC SPRINT STAR Nebuliser (red insert)
| Total Output Rate: | 450 mg/min |
| MMD: | 2.2 µm |
| Mass percentage below 5 µm: | 89 % |
Measurement with the Malvern Mastersizer X at 23 °C, 50 % relative humidity, nebulised medium: 0.9 % NaCl (5 ml), inspiratory flow 12 l/min (measured with child's inspiratory flow).
| Compressor | |
| Electrical connection: | 230V~ / 50Hz / 0,7 A / 80 W |
| Case dimensions (W x H x D): | 19.2 x 14.5 x 15 cm |
| Weight: | 1.7 kg |
| Pressure: | 1.6 bar |
| Guarantee: | 1 year |
Spare parts: All spare parts can be purchased from your local PARI retailer.
and manufacturer's declaration IEC 60601-1-2: Edition 4.0; 2014-02
