PARI LC SPRINT® Family

Nebulisers for specific aerosol droplet sizes

The aerosol that a nebuliser produces consists of many small droplets. The size of these droplets determine where the aerosol will be deposited in the airways.

The nebulisers of the PARI LC SPRINT family are tailored with different nozzle baffles (inserts) in a range of colours, which generate different droplet sizes.
Easy to clean.

Where to buy this PARI product online

Good nebuliser technique with PARI PIF Control

Some members of the PARI LC SPRINT family are equipped with PIF Control

What is PARI PIF Control?
PIF = Peak Inspiratory Flow

Training for good nebuliser technique
Controlled inhalation promotes the deposition of the active ingredients where it is needed - into the lungs. To achieve the best possible technique for a high level of lung deposition, PARI has developed a feedback system – PIF Control.

_{A YouTube video is loaded here. If you cannot see the video window, it is because you do not allow external content in your settings. For more information, please see our Privacy Policy.}

PARI LC SPRINT family – customised to the individual needs of users

PARI LC SPRINT SINUS Nebuliser for the Upper Airways

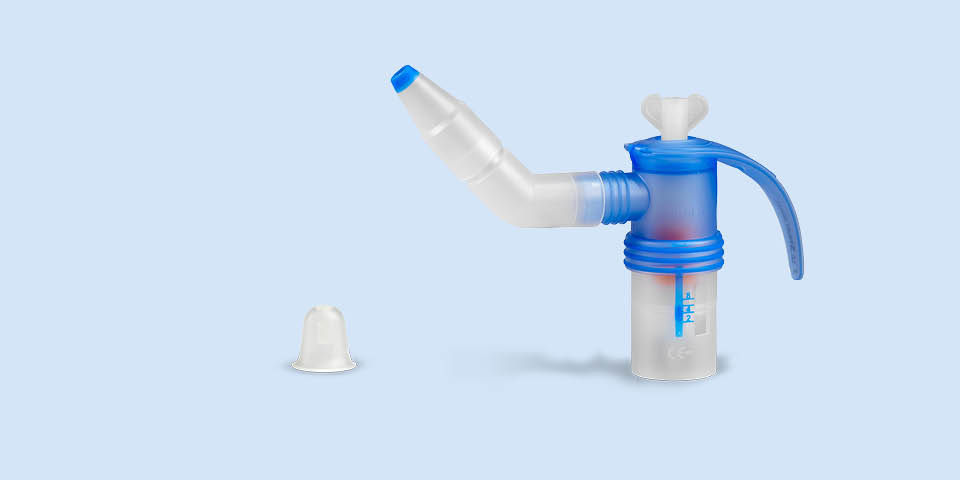

PARI LC SPRINT SINUS Nebuliser

To be used with the PARI SINUS or PARI SINUS2.

Users

For children and adults for treatment of the nasal sinuses.

Configuration
PARI LC SPRINT SINUS Nebuliser (orange nozzle attachment) with bend (45 degrees), vibration connection, nasal joining piece and nasal plug.

Item No.: 023G2800

Aerosol characteristics

PARI SINUS compressor in combination withPARI LC SPRINT SINUS Nebuliser

Total Output Rate:	220 mg/min
MMD:	3.2 µm
Mass percentage below 5 µm:	71 %

Downloads

PARI SINUS

Instructions for use
028D1020-B-06/18

Download PDF

PARI SINUS - Tips for Use and Hygiene

PARI SINUS - Tips for Use and Hygiene

Download PDF

PARI LC SPRINT nebulisers for the Lower Airways

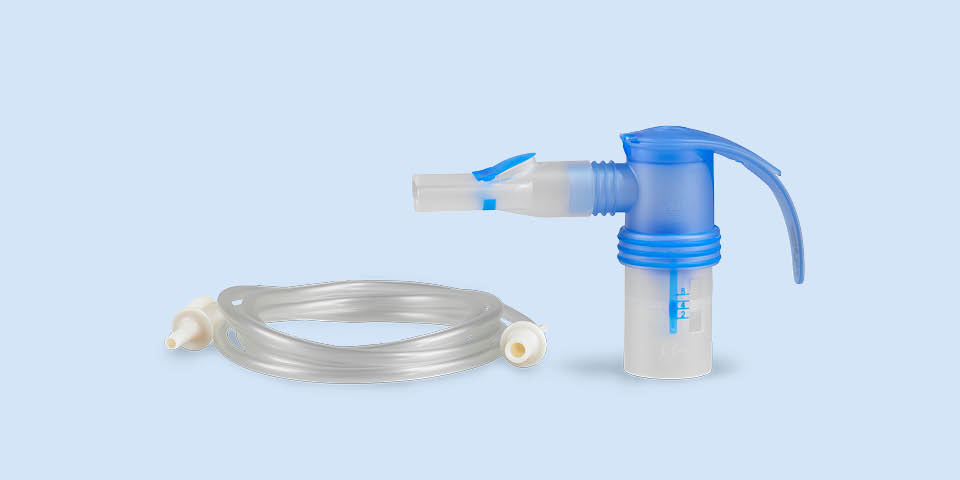

PARI LC SPRINT Nebuliser

Users
For adults and children from 4 years of age for treatment of the airways.

Configuration
Jet nebuliser (blue nozzle attachment) with valve system, universal mouthpiece and connection tubing.

Item No.: 023G1001

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT Nebuliser

Respirable Drug Delivery Rate:	99 µl/min
MMAD:	3.8 µm
Mass fraction < 5 µm:	62 %

Downloads

PARI LC SPRINT Western Europe

Instructions for use
023D2001-I-2021/12/05

Download PDF

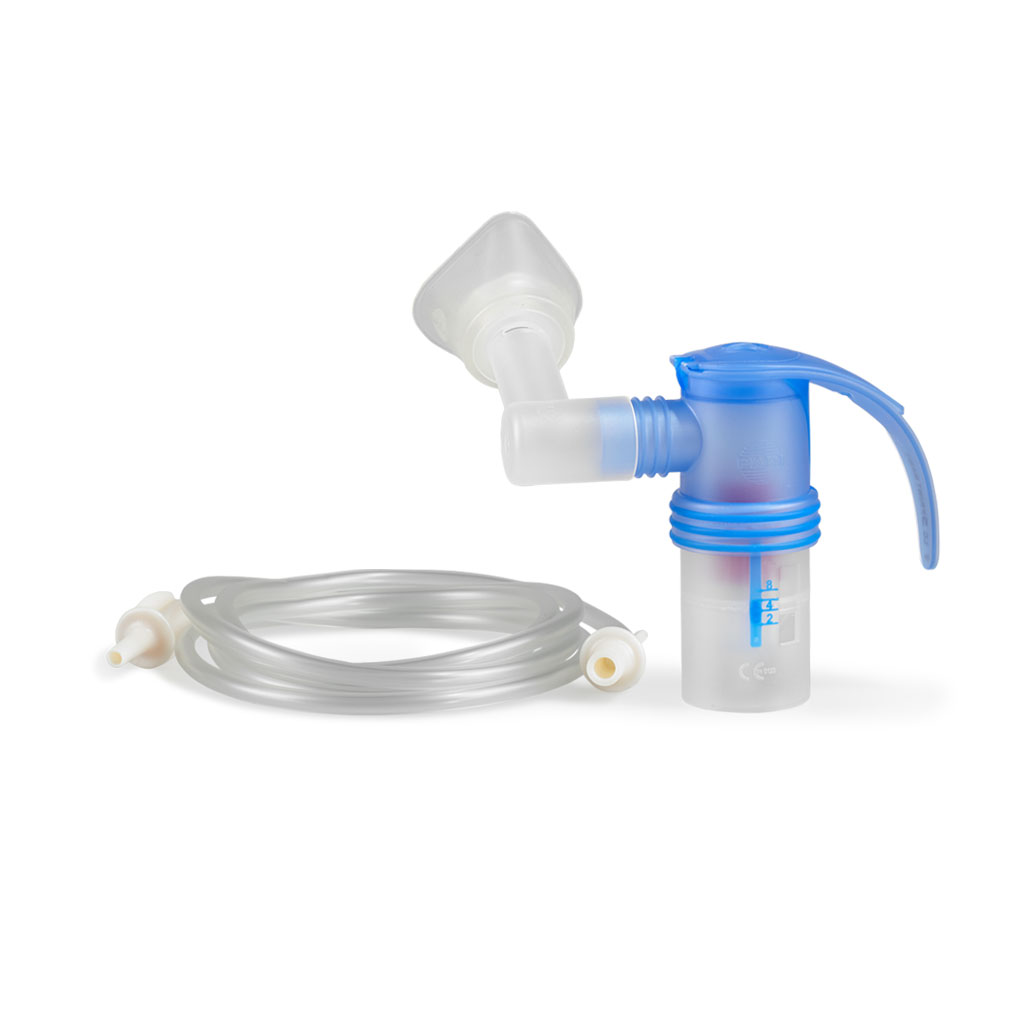

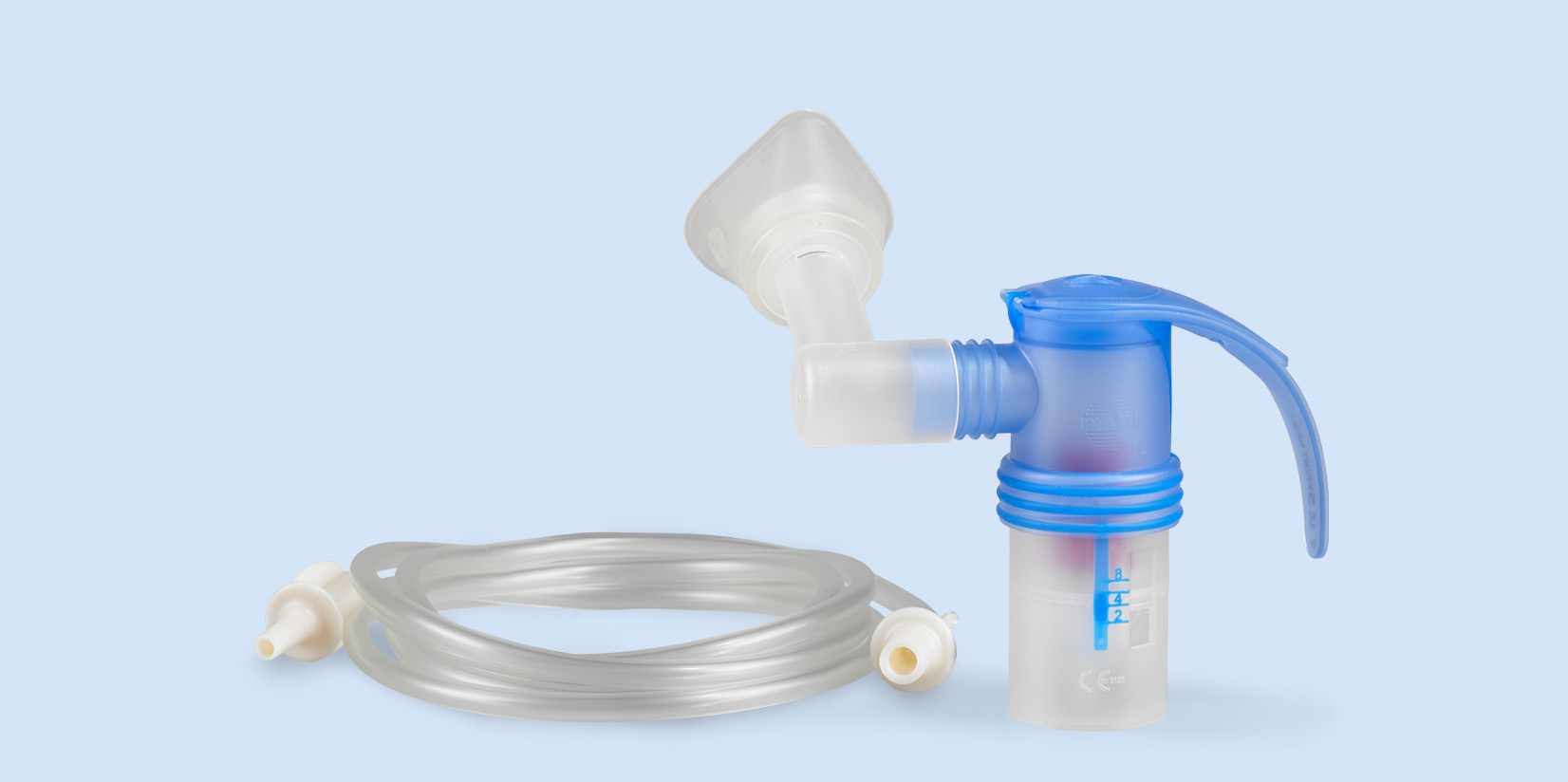

PARI LC SPRINT BABY Nebuliser Size 0

Users
For premature babies for treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 0 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1400

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate	80 µl/min
MMAD:	2.8 µm
Mass fraction < 5 µm:	80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

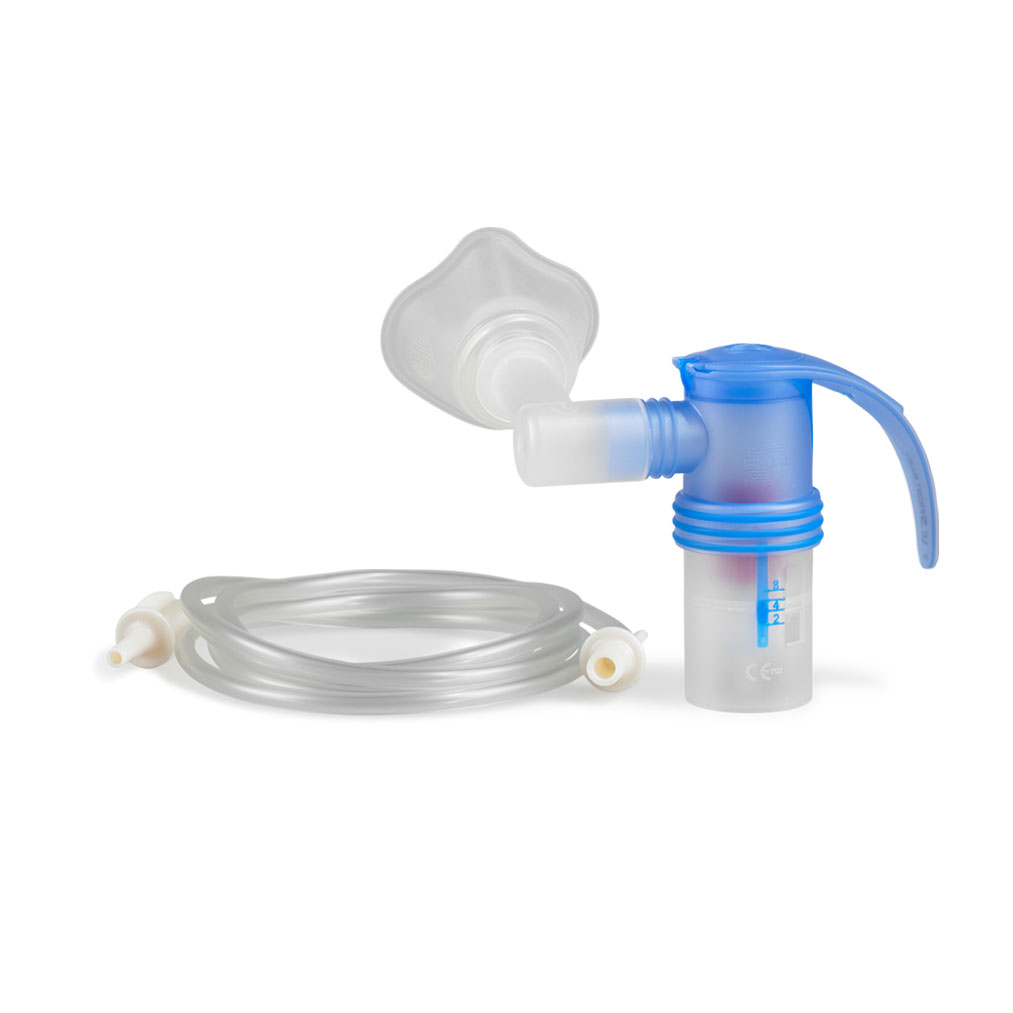

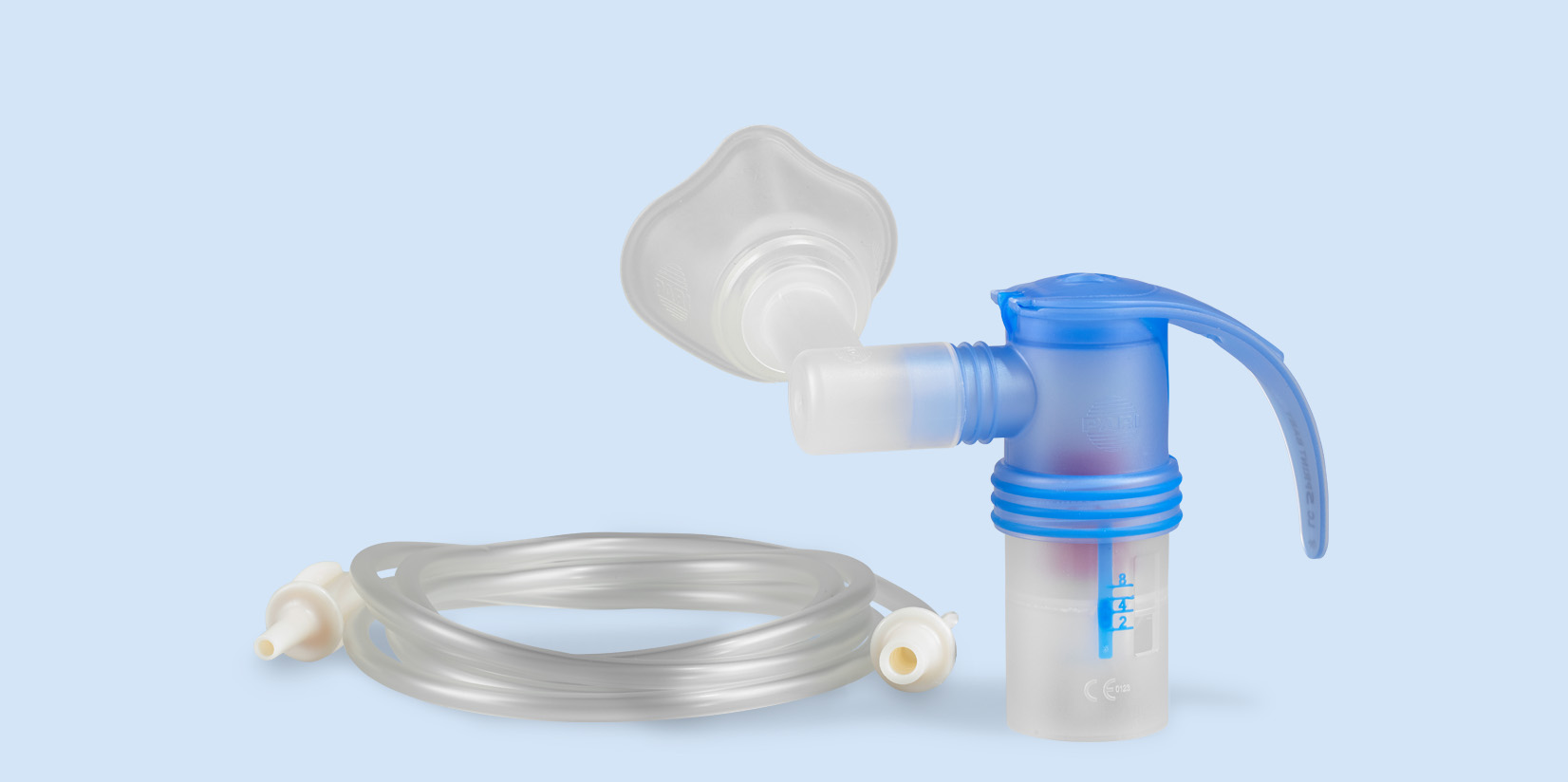

PARI LC SPRINT BABY Nebuliser Size 1

Users
For babies and small children 0-1 years of age for treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 1 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1401

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate	80 µl/min
MMAD:	2.8 µm
Mass fraction < 5 µm:	80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

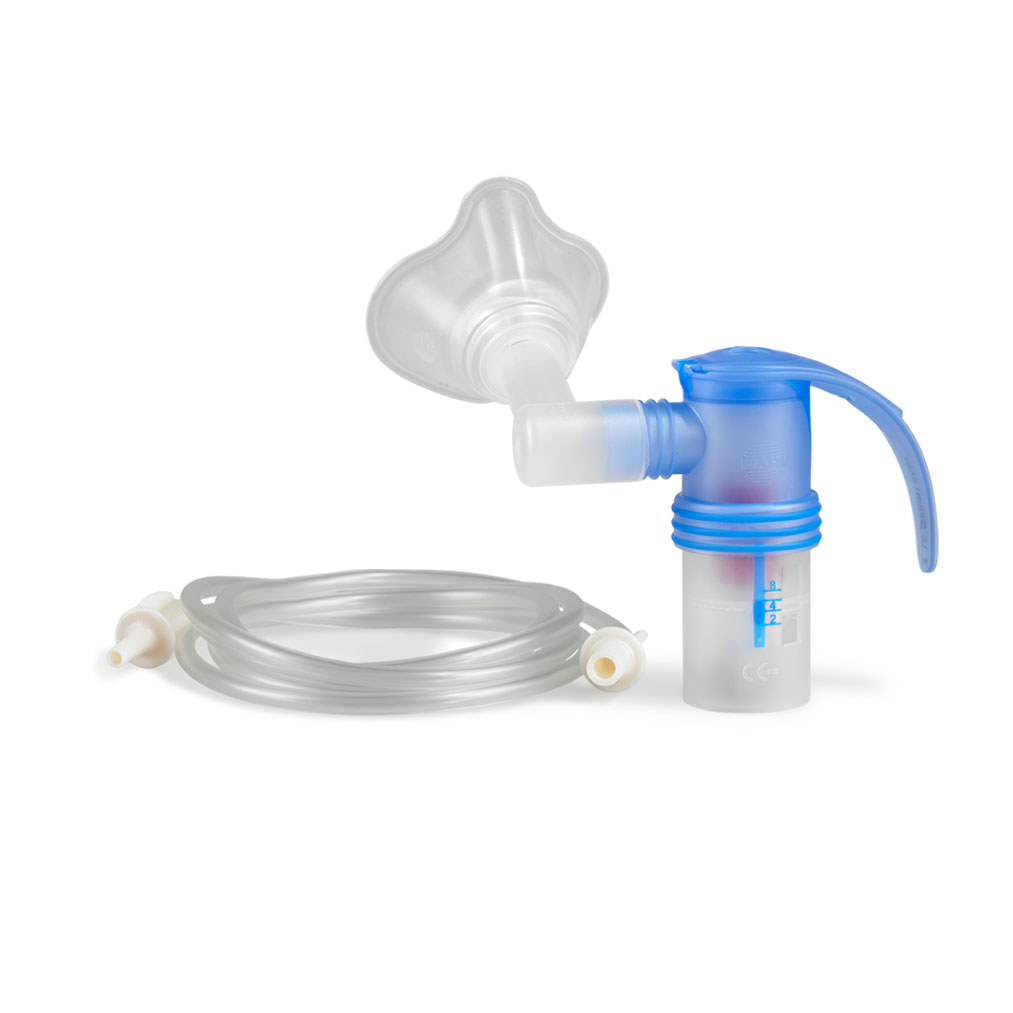

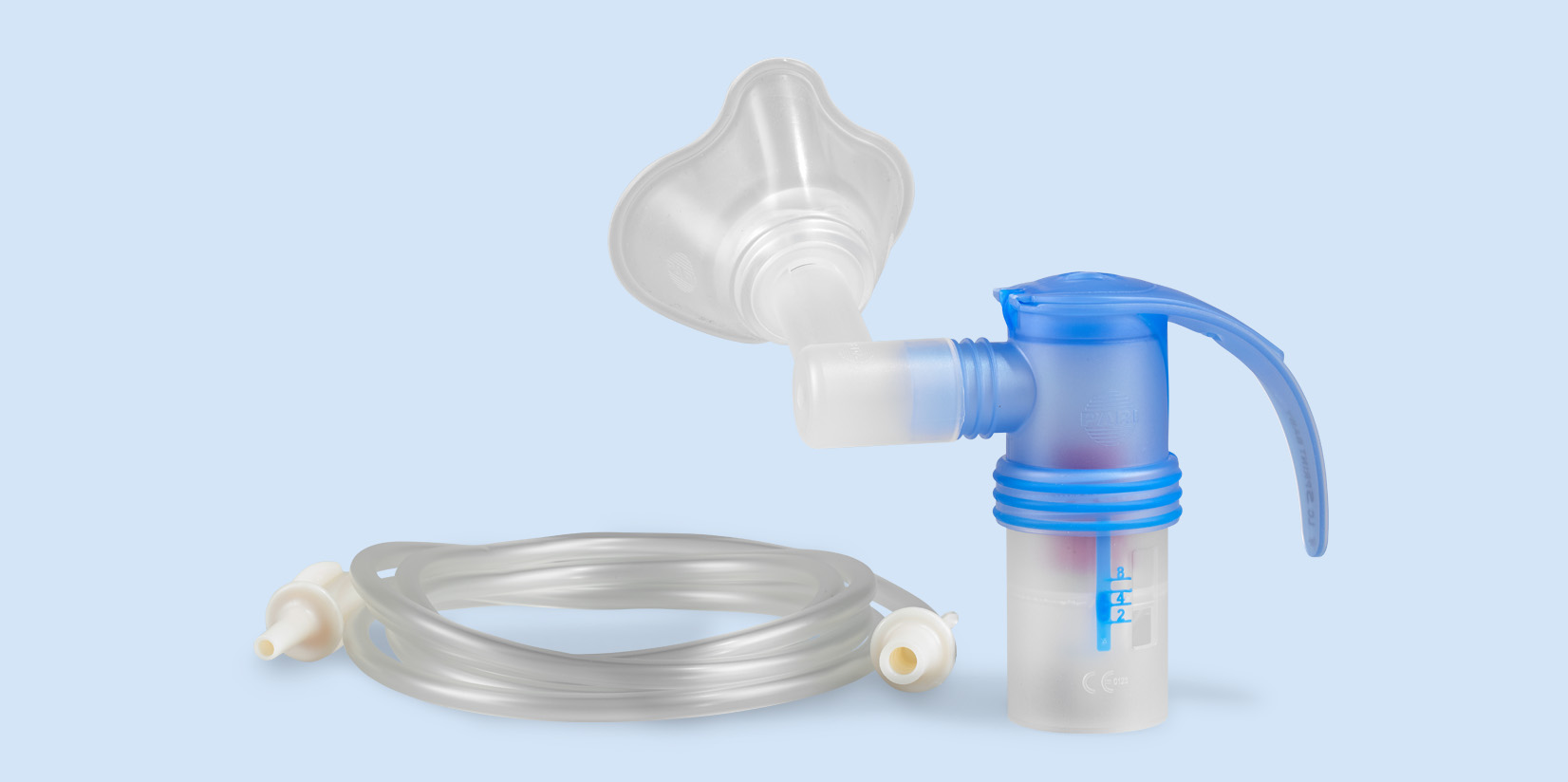

PARI LC SPRINT BABY Nebuliser Size 2

Users
For babies and small children 1-3 years of age for treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 2 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1402

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate	80 µl/min
MMAD:	2.8 µm
Mass fraction < 5 µm:	80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

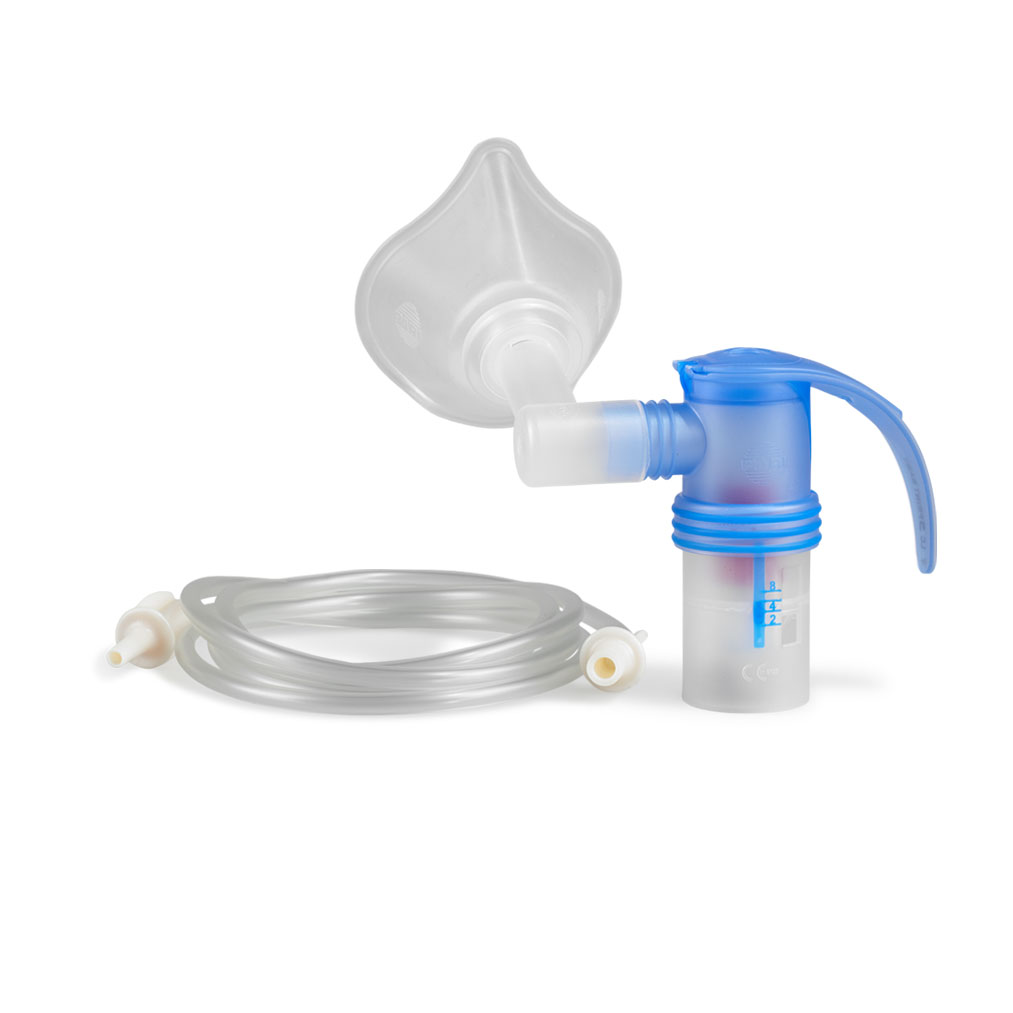

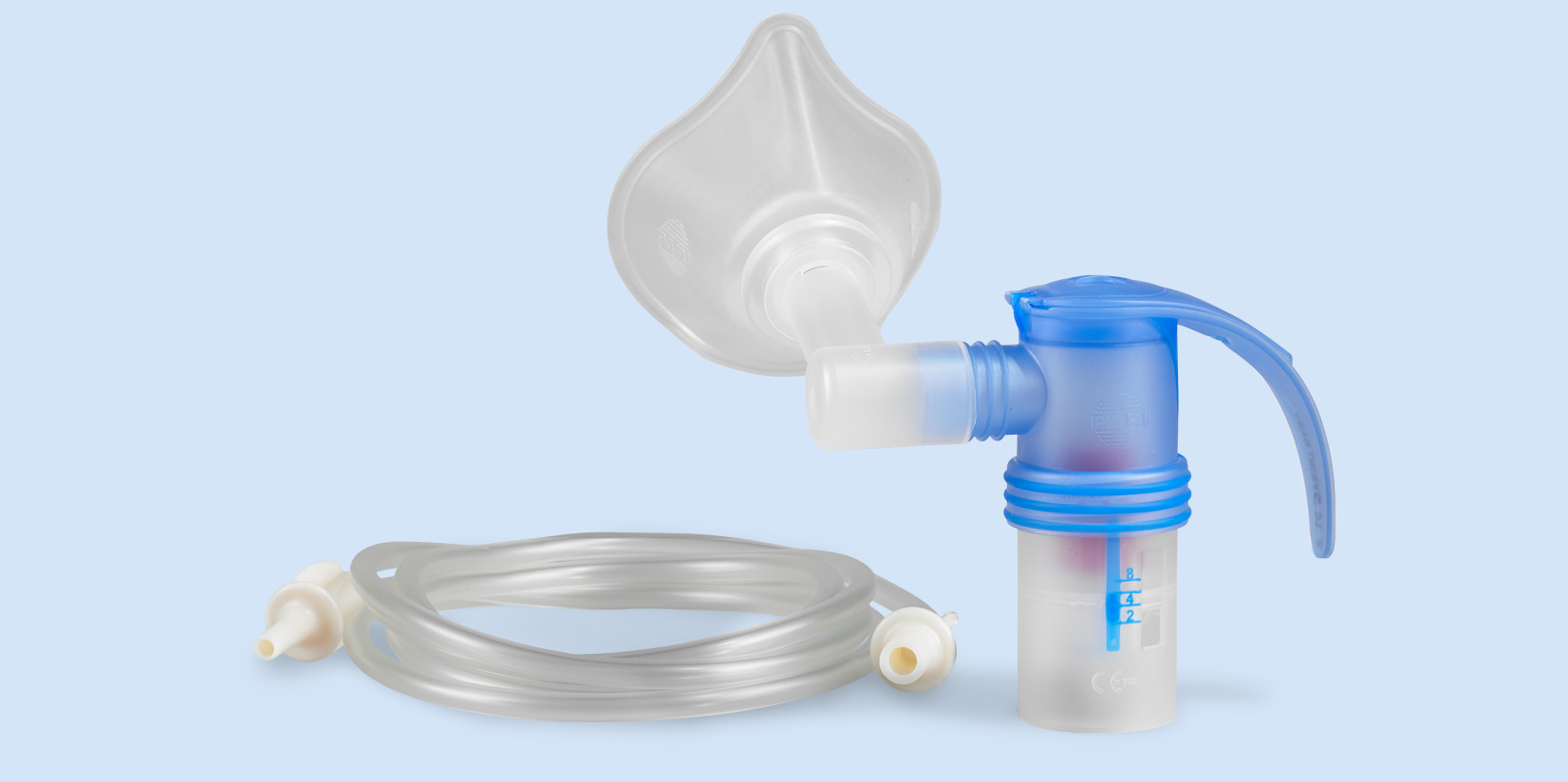

PARI LC SPRINT BABY Nebuliser Size 3

Users
For children from 3 years of age for treatment of the airways.

Configuration
Jet nebuliser (red nozzle attachment), BABY Mask Size 2 and freely rotatable BABY bend, connection tubing.

Item No.: 023G1403

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT BABY Nebuliser

Respirable Drug Delivery Rate	80 µl/min
MMAD:	2.8 µm
Mass fraction < 5 µm:	80 %

Downloads

PARI LC SPRINT Family

Instruction for use
023D1001-M 02/15

Download PDF

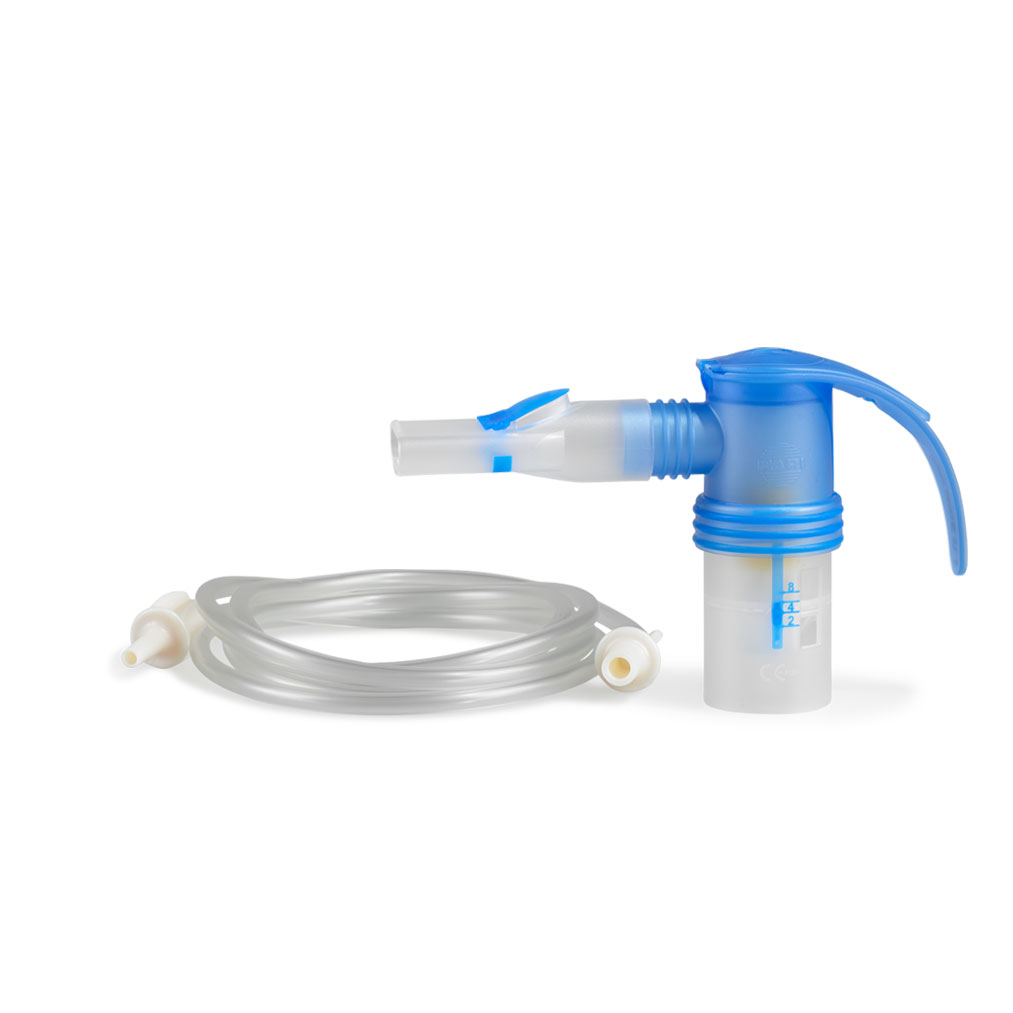

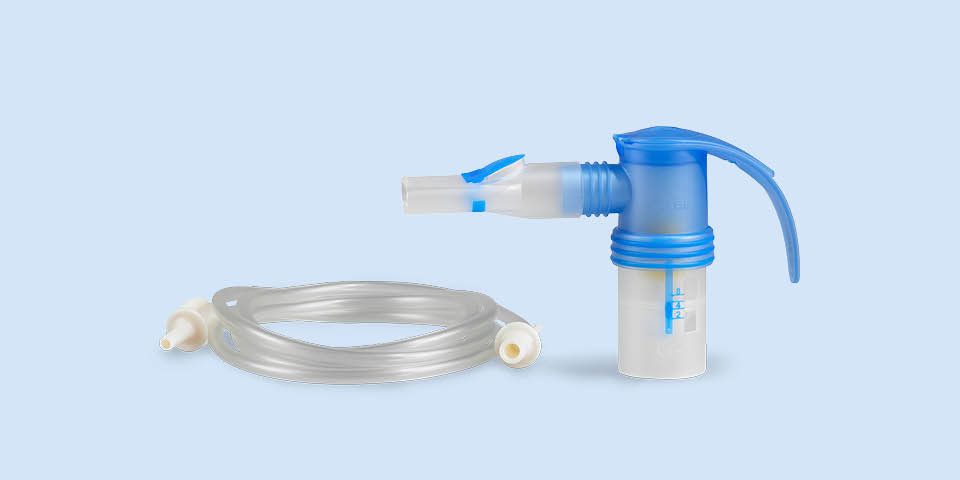

PARI LC SPRINT Junior Nebuliser

Users
For children for treatment of the airways

Configuration Jet nebuliser (yellow nozzle attachment) with valve system, universal mouthpiece, and connection tubing.

Item No.: 023G1101

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT Junior Nebuliser

Respirable Drug Delivery Rate	117 µl/min
MMAD:	3.1 µm
Mass fraction < 5 µm:	73 %

Downloads

PARI LC SPRINT Western Europe

Instructions for use
023D2001-I-2021/12/05

Download PDF

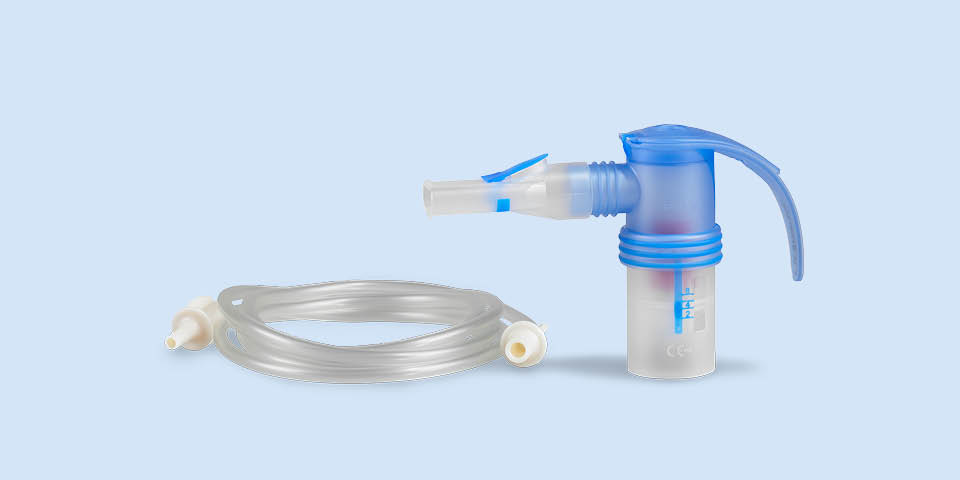

PARI LC SPRINT STAR Nebuliser

Users
For children and adults for treatment of the deep airways.

Configuration
Fine droplet nebuliser (red nozzle attachment) with PIF control, universal mouthpiece and connection tubing.

Item No.: 023G1250

Aerosol characteristics

PARI BOY compressor in combination with PARI LC SPRINT STAR Nebuliser

Respirable Drug Delivery Rate	80 µl/min
MMAD:	2.8 µm
Mass fraction < 5 µm:	80 %

Downloads

PARI LC SPRINT Western Europe

Instructions for use
023D2001-I-2021/12/05

Download PDF

PARI LC SPRINT Nebuliser for the Lungs – for the treatment of patients with a tracheostoma

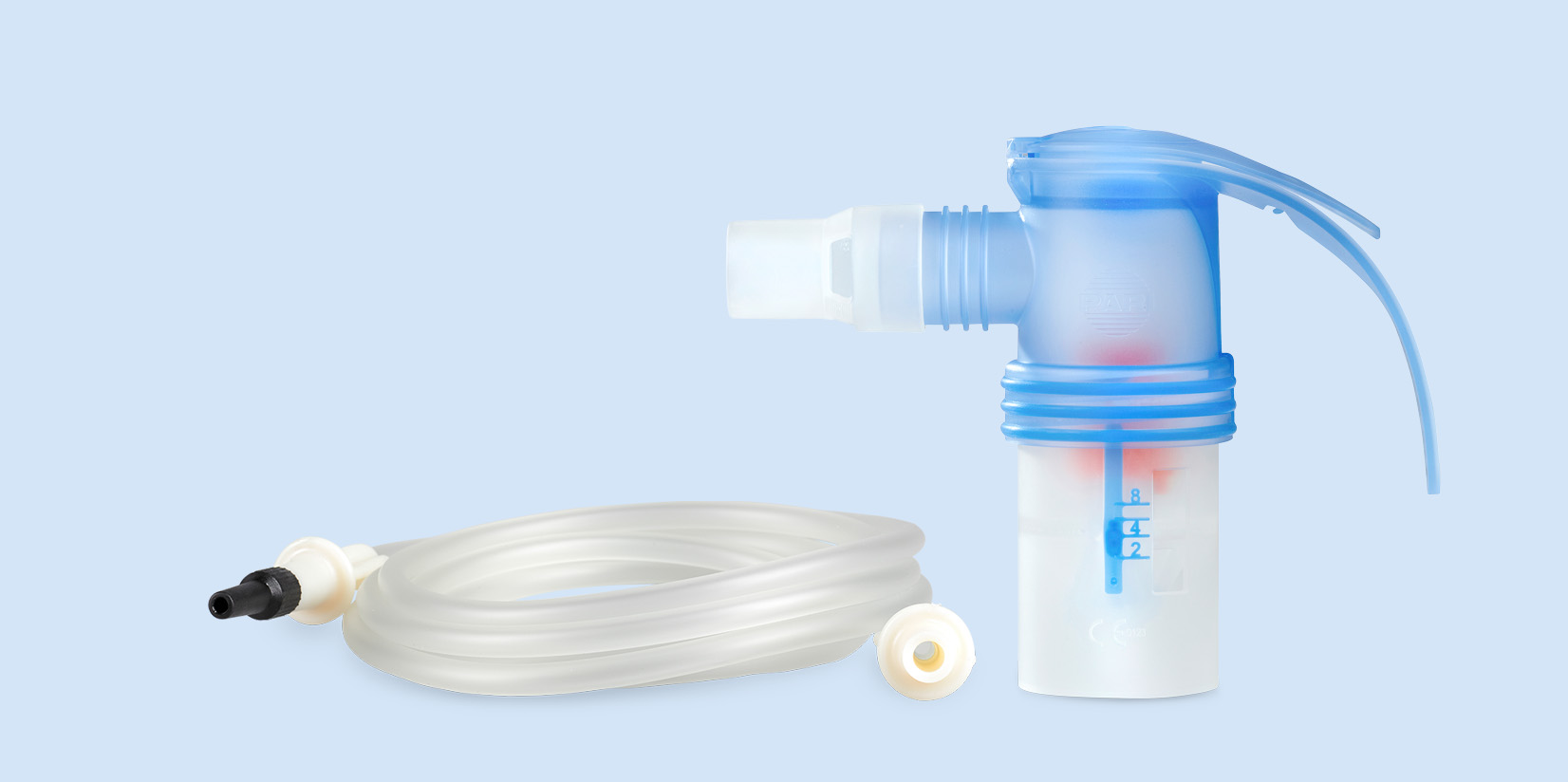

PARI LC SPRINT Tracheo

Users

For the treatment of the airways of children and adults with a tracheostoma.

Configuration
Jet nebuliser (nozzle insert orange) with valve system, LC Tracheo adapter and connecting tubing with adapter.

Item No.: 023G1081

Aerosol characteristics

Aerolsolcharacteristics of the PARI LC SPRINT Nebuliser in combination with the PARI CENTRAL (pneumatic source 1,6 bar)

Respirable Drug Delivery Rate	90.2 µl/min
MMAD:	3.4 µm
Mass fraction < 5 µm:	69.4 %

Downloads

PARI LC SPRINT Tracheo Western Europe

Instructions for use
023D2141-A-de-2022-12-02

Download PDF

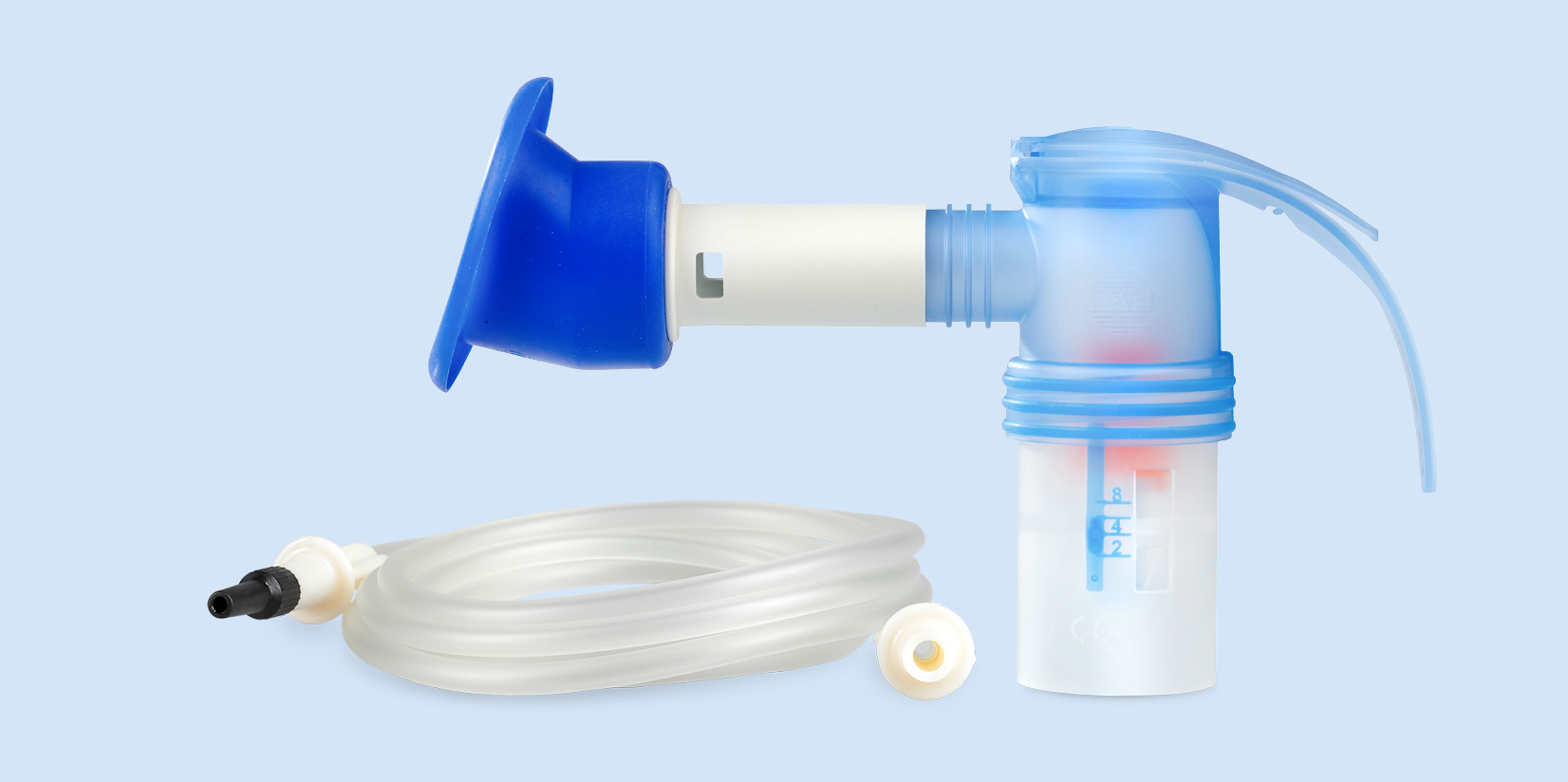

PARI LC SPRINT Tracheo with Mask

Users
For the treatment of the airways of children and adults with a tracheostoma.

Configuration
Jet nebuliser (nozzle insert orange) with valve system, PARI Tracheo mask adapter, PARI Tracheostomy mask and connecting tubing with adapter.

Available as a spare part: PARI Tracheo Mask which consists of the PARI Tracheo mask adapter, PARI Tracheostomy mask (025G0008).

Item No.: 023G1091

Aerosol characteristics

PARI LC SPRINT Tracheo Nebuliser in combination with the PARI CENTRAL (pneumatic source 1,6 bar)

Respirable Drug Delivery Rate (RDDR):	90.2 µl/min
MMAD:	3.2 µm
Massenanteil < 5 µm:	69.4 %

Downloads

PARI LC SPRINT Tracheo Western Europe

Instructions for use
023D2141-A-de-2022-12-02

Download PDF

Aerosol characteristics:

Measurement according to DIN EN ISO 27427:2020-2 (with salbutamol)

For the PARI LC SPRINT Sinus Nebuliser Measurement with the Malvern Spraytec at 23° C, 50% relative humidity. Nebulised medium: 0.9% NaCl (5 ml), jet flow 4.6 L/min.

Spare parts
You can get all replacement parts directly from PARI Medical Ltd.

What is PARI PIF Control?
Training for effective treatment

Controlled inhalation promotes the deposition of the active ingredients in the lungs. To achieve the best possible technique for a high level of lung deposition, PARI has developed a breath-sensing feedback system – the PIF Control System.

PIF = Peak Inspiratory Flow
In the event of inhaling too deeply, the inspiratory valve closes the nebuliser chamber to a small opening.
You feel this as resistance – a sign to breathe out and then inhale more slowly with the next breath. Repeat until no more resistance can be felt.

Accessories for the PARI LC SPRINT SINUS

PARI LC SPRINT SINUS Application Set for use with the PARI SINUS & PARI SUNUS2

May only be used with the nebuliser PARI LC SPRINT SINUS (023G2800) and with the PARI LC SPRINT SINUS Year Pack (023G2860), 45-degree bend, nasal joining piece, vibration connection, nasal plug (023G3811).

PARI SINUS2

Pulsating aerosol for the treatment of sinusitis.

Go to PARI SINUS2

The colours of the nozzle attachments

The nebuliser chamber is the aerosol generator and therefore the heart of the entire system. To ensure that the droplets get to where they are needed, e.g. the central part or the outer parts of the lung, aerosols with different sized droplets must be generated.
